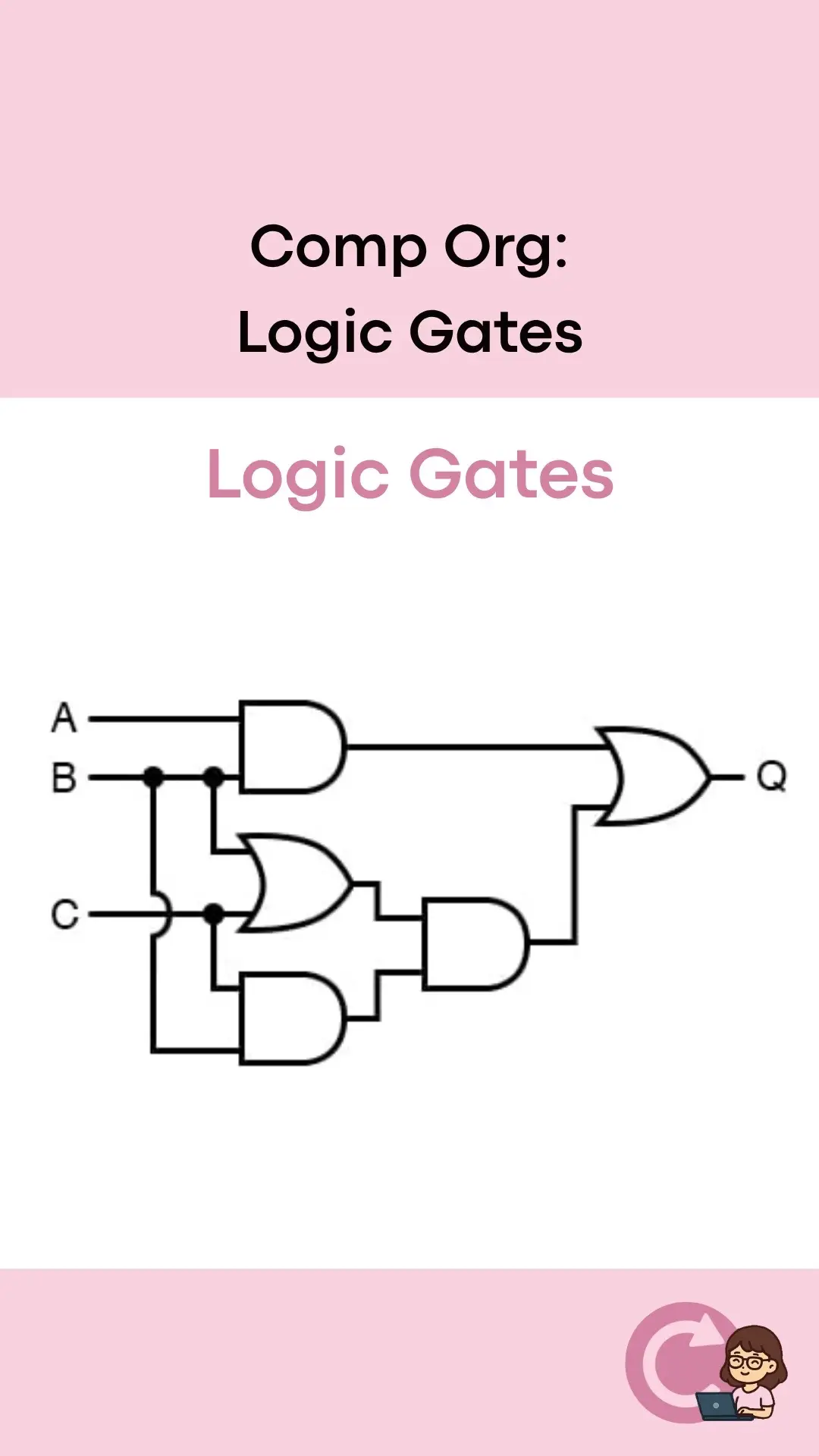

Comp Org:
Logic Gates
Logic Gates
A
B
Q
BUFFER
A
A
Output is the same as input
Input
0
1
Output
0
1
AND
A
B
AB
Output is 1 when all inputs are 1
A
B
Output
0
0
0
1
0
0
1
1
1
OR
A
B
A+B
Output is one when at least one
input is one
A
B
Output
0
0
0
1
0
1
0
1
1
XOR
A
B
A⊕B
Output is 1 when there are an
odd number of 1 inputs
A
B
Output
0
0
0
1
0
1
1
0
INVERTER (NOT)
A
A
Output is the opposite of input
Input
Output
0
1
1
0
NAND
A
B
AB
Output is opposite of AND
A
B
Output
0
0
1
1
0
1
0
1
1
1
0
NOR
A
B
A+B
Output is opposite of OR
A
B
Output
0
0
1
1
0
0
0
1
0
1
1
1
XNOR
A
B
AO B
Output is opposite of XOR
A
B
Output
0
0
1
1
0
0
0
1
0
1
1
1
